Product Specifications
Specification Sheet
| Item | Description | |
|---|---|---|
| Product name | I-Robo 2 | |
| Model | Check the separate delivery specifications. | |
| External dimensions | Width (W) | 700 mm / 27.559 inch |
| Height (H) | 1320 mm / 51.969 inch | |
| Depth (D) | 700 mm / 27.559 inch | |
|
Weight |
130kg / 286.60lb | |
| Input power supply | 3-phase, 200 to 230V AC, 50/60 Hz | |
| Power consumption | 8.5 kW | |
| Water supply and drainage | Water supply pressure | 0.3 MPa / 43.511 Psi or less |
| Drained water temperature | 176 °F (80 °C) or less | |
| Exhaust |
For Type I exhaust hoods or hoods considered equivalent 139.5 m3/h / 82.106 Cfm or more |
|
| Heating | Heating IH cookware output | 5 kW |
| Washing | Rinse temperature | 140 °F (60 °C) or more |
| Touch panel (LCD) | 12 inches (for display and operation) | |
| Input/output terminal | LAN terminal | RJ-45 |
| Installation and operating environment | Ambient temperature | 41 °F (5 °C) to 95 °F (35 °C) |
| Ambient humidity | 20 to 85% Rh (non-condensing) | |
| Voltage fluctuation | Within ±10% of rated voltage | |
| Lifespan | Maximum three years (provided that regular maintenance is performed appropriately.) | |

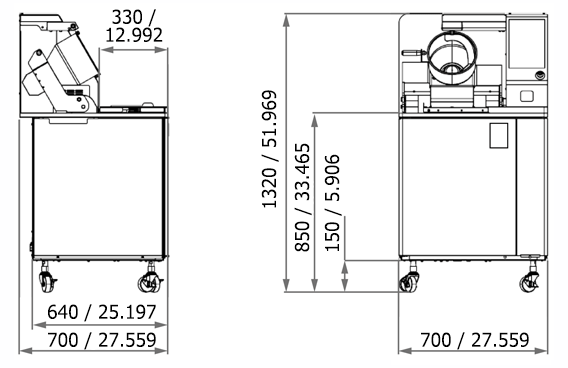

External Dimensions
Unit: mm / inch
Software Information for This Product
This product contains open-source software licensed under the GNU General Public License (GPL), the GNU Lesser General Public License (LGPL), and other licenses.
For details of the license terms, including attribution requirements, please refer to the TechMagic website below.
https://techmagic.co.jp/license/
Disclosure of Source Code: We provide the source code for software subject to the GPL and LGPL in accordance with the respective license terms.
If you wish to copy, modify, or distribute this software, please contact the TechMagic customer support center below by e-mail.
[Contact Information]
TechMagic Inc.
Corporate Headquarters
OSS Management Office
e-mail address: oss-info@techmagic.co.jp
* Please comply with the terms of each license when copying, modifying, or distributing.
* This email address is for inquiries regarding open-source software (OSS) only.
