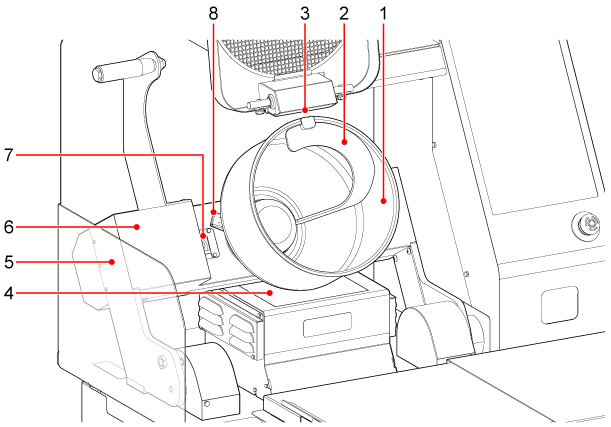

Cooking Unit
| No. | Name | Function |
|---|---|---|
| 1 | Pot | Used for cooking ingredients. |
| 2 | Spatula |
Used to stir ingredients. Clamps and secures the pot using a magnet. |
| 3 | Spatula home position | Detects the origin position of the spatula using a magnet. |
| 4 | IH heating unit | Heats the pot. |
| 5 | Arm | － |
| 6 | Frame cover | － |
| 7 | Pot temperature sensor | Detects whether the pot is overheating. |
| 8 | Pot rotation sensor | Detects the rotation of the pot using a magnet. |
- The magnet at the base of the spatula is very strong. Avoid placing your fingers or objects between it and the sensor to prevent pinching.
- Keep magnetically sensitive items (cash cards, commuter passes, memory cards, watches, etc.) away from the IH heating unit area, pot, and spatula.
Exposure to the magnet may erase stored data and render such items unusable.
